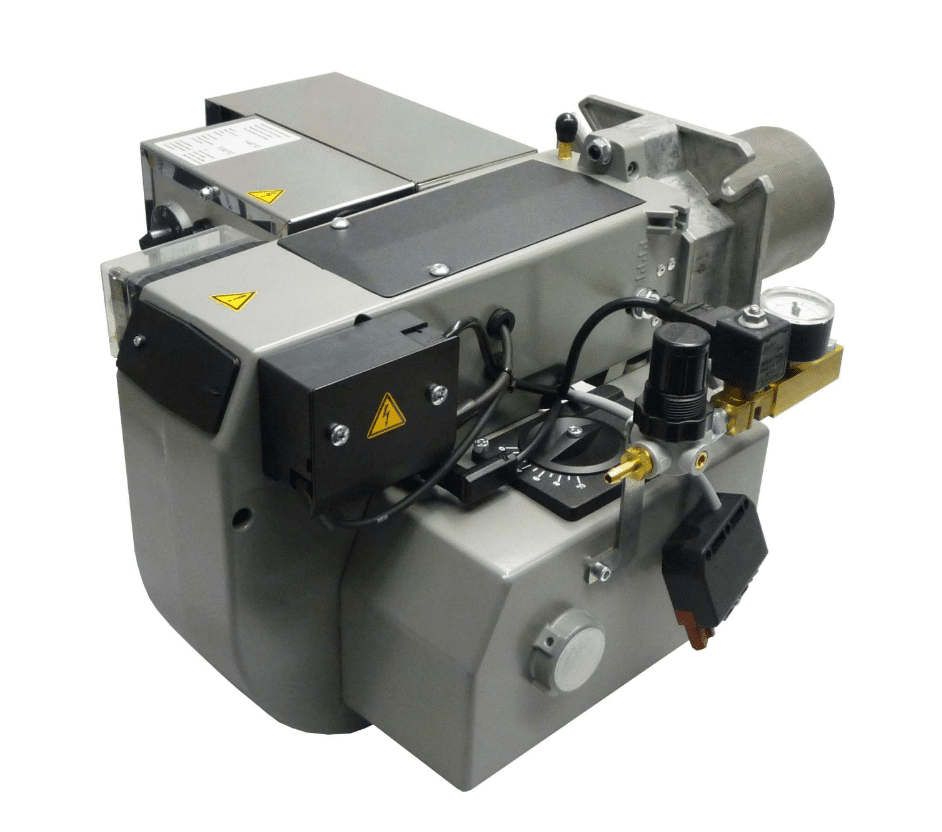

EMB WASTE OIL BURNERS

The EMB waste oil burners are German made by MVZ GMBH.

How do the waste oil burners function?

The fuel is pumped out of the supply tank and into the burner tank. A float switch controls the level inside the burner tank. Two other float switches (overflow protection) provide fuel overflow sensing which isolate power in the event of the tank being overfilled. A thermostat regulates the oil temperature in the burner tank and starts the burner when the set temperature is reached. Thereafter, the Siemens oil burner control controls and monitors the operation of the burner. Fuel is drawn from the pre-heat tank and finely atomised by a special nozzle using the compressed air flowing through the burner air regulator, which is used as the primary air for the combustion process. The burner’s electric motor driven blower fan supplies the secondary air which is added to the atomised spray behind the special nozzle and it’s diffuser ring. The diffuser generates a spriral air flow past the special nozzle. This ensures full combustion and operational reliability. If the fuel or oil temperature rises to in excess of 150° C, the safety switch automatically de-energises the burner.

Power Options

The EMB Series start at 20kW, then 50kW, 70kW, 100 kW, 150kW and 200kW

Pricing

The EMB20 and 50 is $7957 + GST

The EMB 70 and 100 is $8470 + GST

The EMB150 and 200 is $8690 + GST

The price difference is due to the number of nozzles. The EMB20/50 uses one nozzle, the EMB70/100 two and the EMB150/200 three nozzles.
